    11mm High Strength Prestressed Concrete Steel Bar For Phc Pile

    11MM PC STEEL BAR FOR KOREA


    PC steel bar information:


    1, Technical parameters of PC BAR

    Size(mm)Surface Shape Type

    Nominal steel area

    (S/mm2)

    Tensile Strength

    (Mpa)

    Yield Stress

    (Mpa)

    Relaxation

    rate

    (%)

    Elongation

    (%)

    7.4Spiral Groove39-41.7≥1420≥1280≤2.0≥7.0
    9.262.4-66.5
    1187.5-93.6
    13121.5-129.9

    2, Chemical composition (%) of PC BAR –Material 30MnSi

    CSiMnP(Max)S(Max)Cu(Max)
    0.28-0.330.60-0.900.90-1.300.030.0350.3

    3, Reference info

    Production standardKSD3505

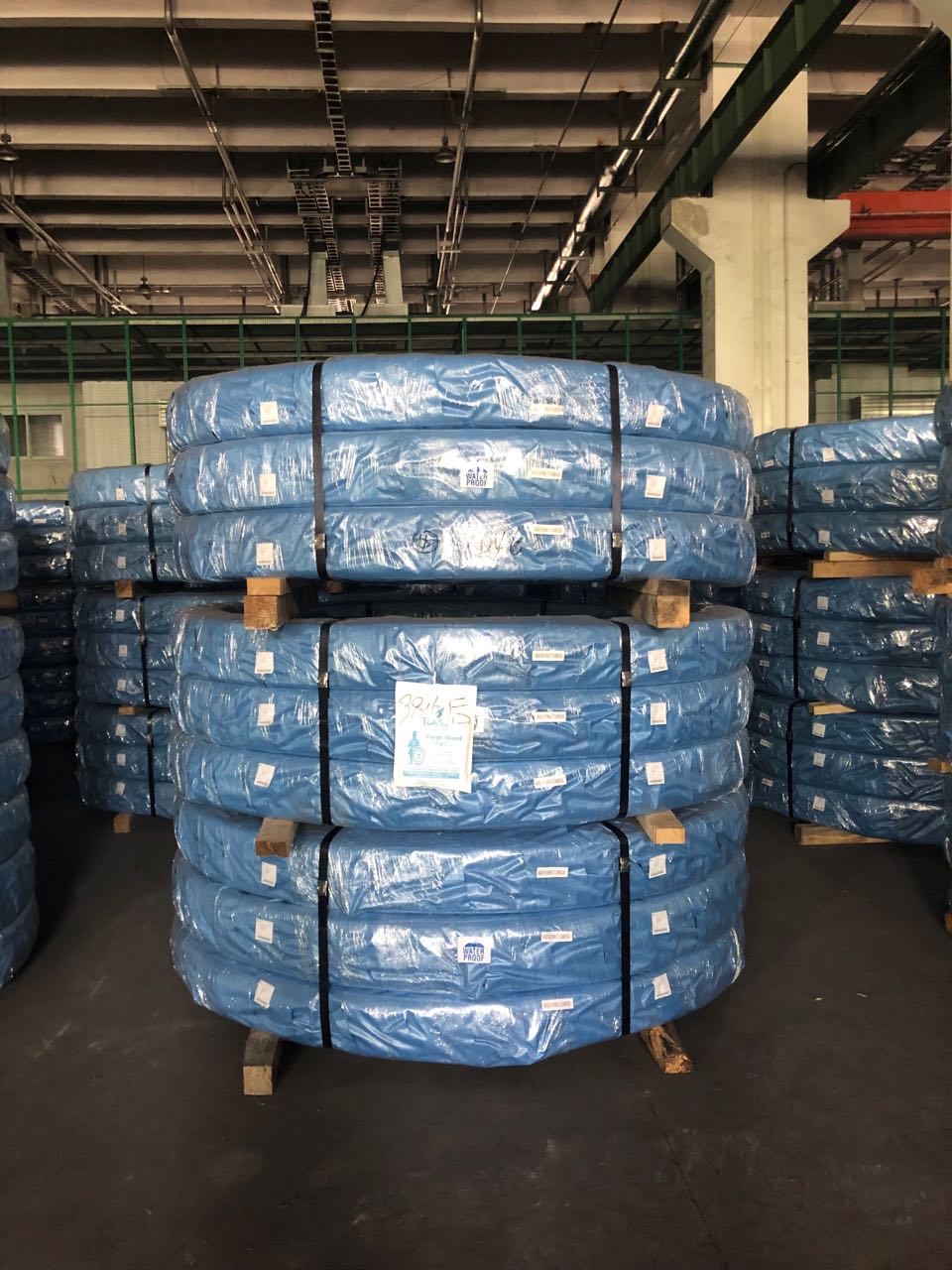

    PackingTied with at least 8 steel strips per coil, wrapped with PP woven or stretch film
    Coil weightApprox. 0.9MT and 1.3MT
    Diameter of CoilInside Dia.:1.99m Outside Dia.:2.3m Height:18cm
    ApplicationPre-stressed concrete pile /Spun piles /Poles

    4,Our Advantages :

    1) We complete fully production process from Iron making-Steel making-Steel rolling-High Speed Wire Rod-PC Bar Processing-Finished Products.

    2) Well control quality of Raw material , as we use the raw material wire rod from own steel factory.

    3) 68 prodcution lines with fastest delivery time

    4) Competitive price and good reputation in the Industry.


    5, FAQ

    Q1, what is the delivery time?

    Normally the deliery time is within 14 days ready for shipment after ordering.


    Q2,What are your production standards?

    We can produce PC BAR according to JIS G 3137:2020,KS D 3505-2019,GB/T 5223.3-2005,MS1138:PART 3,SNI 7701:2016 standards.


    Q3,What countries did you expoort of PC bar?

    We exported PC BAR to Vietnam, Korea,Malaysia, Indonesia, China Taiwan ect. countries.
